404A920

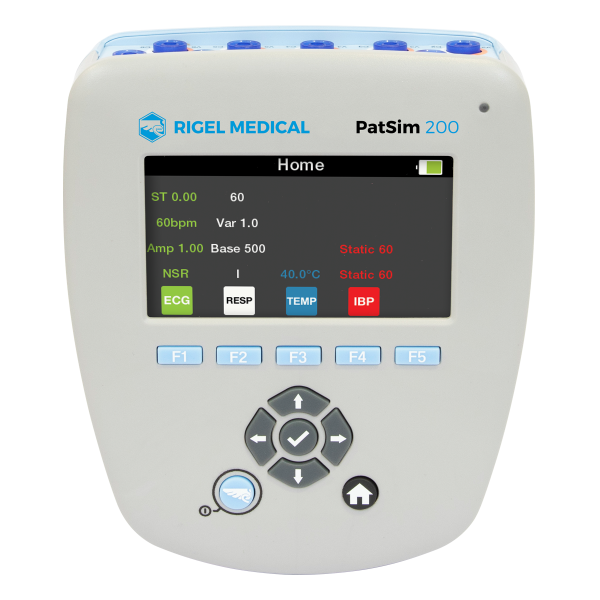

PatSim 200

A cost effective, easy to use Patient Simulator

- Vibrant colour display with simple fast navigation
- Lightweight and compact unit with rechargeable Li-Ion battery
- Recall saved simulations with a one key press
- Onscreen waveforms display
- Robust carry case included
- Localisation options available to meet international requirements

Where to buy or ask us a question

Share with...

Large Colour Display

High contrast and low luminance colour display

Store and Recall Simulations

With the touch of a button, recall the 5 most used simulations

Onscreen Waveform Display

Arrhythmia waveforms displayed for quick reference

Rechargeable Li-Ion Battery

Up to 6 hours of operations between charges

The PatSim 200

The PatSim 200 from Rigel was designed to make every patient simulation quicker.

Unlike other Patient Simulators, the PatSim uses a home and recall function to easily move between tests and store your most used sequences, no more clicking and scrolling through 'tree style' hierarchy to perform each test.

One of the most unique features of the PatSim 200 is the ability to save and recall 5 of your most used simulations at the touch of just 3 buttons.

The unit itself is compact, lightweight and the full colour screen with easily altered high contrast low luminance lighting means adapting the unit for use in low lighting environments is simple. On top of these great features we've also ensured that the PatSim 200 comes with universal ECG studs and mini DIN connectors so the cost to change your Patient Simulators over to the PatSim 200 won't spiral out of control – our unit will work with the legacy IBP and temperature cables you already have.

These are just a few of the reasons we believe you'll want to invest in our PatSim 200. To see for yourself, request a live online demonstration today!

Watch the PatSim200 video

Why buy the PatSim 200?

- Program your PatSim 200 to recall your most used sequences at the touch of a button, increasing efficiency in the workplace.

- An instant low cost replacement for old patient simulators - the PatSim 200 is compatible with legacy IBP and temperature cables.

- Simple, fast navigation using the dedicated home button and recall key – less button pushing, more testing!

- Lightweight and compact unit with rechargeable Li-Ion battery offering up to 6 hours of operation between charging.

- Each PatSim 200 is covered by a 5 year warranty and a 90 day refund policy. Terms apply.

Key features

- Large colour display with intuitive navigation

- Store and recall the 5 most used simulations with the touch of a button

- Dedicated home navigation button

- Rechargeable Li-Ion battery with up to 6 hours of operations between charges

- High contrast and low luminance colour display for minimal disruption in critical or intensive care environments

- Universal ECG studs to connect with the widest possible range of cables

- Compatible with legacy temperature and IBP interconnect cables

- Onscreen waveform display for quick reference

- Field upgradable firmware – no need to return to base

- Robust carry case to protect your simulator

- International localisation options available to meet requirements across the globe

Simulation Functions

- 12 lead NSR ECG simulation

- Over 40 selectable Arrhythmias

- Performance waveforms

- Respiration simulation on lead I & II

- Universal temperature simulation

- Two channel IBP simulation

- Fetal simulation

Request a Quote

Make an enquiry

Optional Accessories

Carry Cases
all accessories

IBP Cables
Accessories

Temperature Cables
all accessories

Technical Specifications

Simulation Type
Lead I	70%
Lead II	100%
Lead III	30%
Lead V1	24%
Lead V2	48%
Lead V3	100%
Lead V4	120%
Lead V5	112%
Lead V6	80%

ECG
Normal Sinus Rhythm
Rates	30, 40, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200, 220, 240, 260, 280, 300 BPM
Rate Accuracy	±1BPM or 1%
Amplitude (lead II)	0.05 to 0.45mV (0.05mV steps) 0.5 to 5.5mV (0.5mV steps)
Amplitude Accuracy	± 2%
ST Segments	18 selectable values, 8 elevated and 8 depressed -0.8 to +0.8mV in 0.1mV steps and +0.05mV and -0.05mV on Lead II
Neonatal Mode	ECG R wave width is reduced to 40ms

ECG Performance Tests
Square Waves	2Hz, 0.125Hz
Triangle Wave	2Hz
Pulse	60bpm or 240bpm
Sine Waves	0.05, 0.5, 1, 10, 25, 30, 40, 50, 60, and 100Hz
Performance Amplitude	0.5 to 5.0mV in 0.5mV steps

Pacemaker
Simulated Rhythms	Asynchronous at 75 BPM Demand with frequent sinus beat Demand with occasional sinus beat A-V sequential Non-capture Non-function
Pulse Amplitude	1.0, 2.0, 5.0, 10.0mV
Accuracy	± 5%
Width	0.1, 0.2, 0.5, 1.0, 2.0ms
R-Wave Detector Test	30, 60, 80, 120, 200, 250 BPM
Haver-Triangle Width	8, 10, 12, 20, 40 ,60, 80, 100, 120, 140, 160, 180, 200ms
Performance Amplitude	0.5 to 5.0mV in 0.5mV steps

Arrhythmias
Ventricular	Asystole Bigeminy Trigeminy Ventricular fibrillation (coarse) Ventricular fibrillation (fine) Ventricular tachycardia
Supraventricular	Atrial fibrillation (coarse) Atrial fibrillation (fine) Atrial flutter Atrial tachycardia Missing beat Nodal rhythm Paroxysmal atrial tachycardia Sinus arrhythmia Supraventricular tachycardia
Atrial Conduction	First degree AV block Left bundle branch block Right bundle branch block Second degree AV block - Mobitz I Second degree AV block - Mobitz II Third degree AV block
Premature	Premature atrial contraction Premature nodal contraction Premature left ventricle contraction Premature left ventricle contraction - early Premature left ventricle contraction - R on T Premature right ventricle contraction Premature right ventricle contraction - early Premature right ventricle contraction - R on T Premature ventricular contraction - 6 / min Premature ventricular contraction - 12 / min Premature ventricular contraction - 24 / min Premature ventricular contraction - frequent multifocal

Fetal Simulation
Maternal Heart Rate	80 BPM (Fixed)
Fetal Heart Rate (Selectable)	60, 90, 120, 140, 150, 210 and 240 BPM Fetal Heart Rate (IUP) 140 BPM at beginning, then varying with pressure
pressure Intrauterine-Pressure Waveforms	Early deceleration, late deceleration and uniform acceleration
Simulation Period	Manual, or 2, 3, or 5 minutes

Invasive Blood Pressure
Channels	2 channels
Static Pressure	-10, -5, 0, 20, 40, 50, 60, 80,100, 150,160, 200, 240, 320, 400mmHg
Dynamic Simulation	Arterial [ART] 120/80 Radial Artery [RA] 120/80 Left Ventricle [LV] 120/00 Right Ventricle [RV] 25/00 Right Atrium (central venous) [CVP] 15/10 Pulmonary Artery [PA] 25/10 Pulmonary Artery Wedge [PAW] 10/2 Left Atrium [LA] 14/4
Accuracy	± 1mmHg
Excitation voltage	2 to 16V
Impedance	350Ω Nominal
Simulated sensitivity	5μV/V/mmHg or 40μV/V/mmHg (user selectable)
Connector	mini DIN style

Temperature
Simulation	YSI 400 / 700A / 700B Static
Temperature Unit	°C or °F, user selectable
Range	0.0, 24.0, 37.0, and 40.0°C 32.0, 75.2, 98.6, 104.0°F
Accuracy	± 0.1°C / °F
Connector	Mini DIN style

Respiration
Rates	Selectable values of 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm
Lead Selection	Lead I and II, user selectable
Base Resistances	500, 1000, 1500 & 2000Ω
Accuracy	±10%
Resistance Variations	0.2, 0.5, 1.0, 3.0Ω
Apnoea Simulation	Manual ON / OFF

Mains Power/Battery Info
Mains Power/Battery Info	3.7V 3900mAh 14.4WH 5V 1A USB micro-B power supply 100-240V ~ 50/60Hz 0.18A max.
Charge Time (new battery)	Up to 3-4 hours
Battery Life	Up to 6 hours, ~4 hours
Weight	0.70kg / 1.5lbs
Dimensions	180 x 150 x 55mm, 7.1 x 5.9 x 2.2"

Environmental Specifications
Operating Conditions	10 - 40°C (50 - 104°F) 0-90% RH - NC
Storage Environment	-15 - 60°C (5 - 140°F) 0-90% RH - NC
Environmental Protection	IP40
