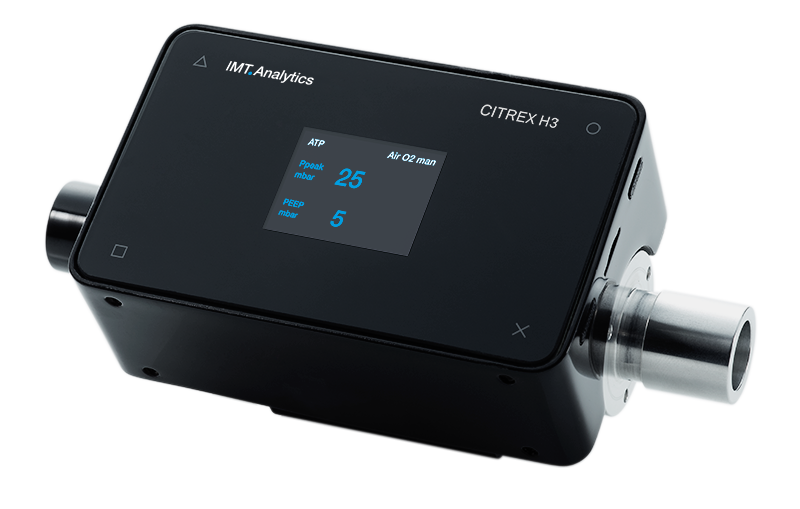

Citrex H3

SPECIFICATIONS & MANUALS

If you're looking for the Citrex H3 datasheet featuring full technical specifications or the instruction manual, you can find them here.

Flow and Pressure Measurements
Measuring direction	Bidirectional
Flow	±300 sL/min*** ±1.9 %* or ±0.1 sL/min (for 10..40°C)**
Temperature compensated	Automatic
Pressure compensated	Automatic
Humidity compensated	Manual

Pressure
Flow channel	-50–150 mbar ±0.75 %* or ±0.1 mbar**
Atmospheric pressure	500–1150 mbar ±1 %* or ±5 mbar**

Units
Flow	L/min, L/s, cfm
Pressure	inH2O, bar, mbar, cmH2O, mmHg

Other measurements
Oxygen (Option) (pressure comp. ≤ 150 mbar)	0–100 % ±1 % O2**
Gas temperature	0–50°C ±1.75 %* or ±0.5 °C**
Gas types	Air, Air/O2, O2, N2O, N2O/O2
Gas standards	ATP, ATPD, ATPS, AP21, STP, STPH, BTPS, BTPS-A, BTPD

General information
Display	1.7'' with touch control elements (color), Realtime curves
Data storage	microSD Card
Power	11.4 x 7 x 6 cm
Weight	0.38 kg
Battery	4 hours
Approvals	CE, BC (Energy Efficiency for Battery Charging Systems), CSA (North America), IEC 61010-1:2010, IEC 61326-2:2012


The greater tolerance is valid: * Tolerance related to the measured value, Absolute tolerance, * The unit sL/min is based on ambient conditions of 0 °C and 1013.25 mbar (DIN 1343).
