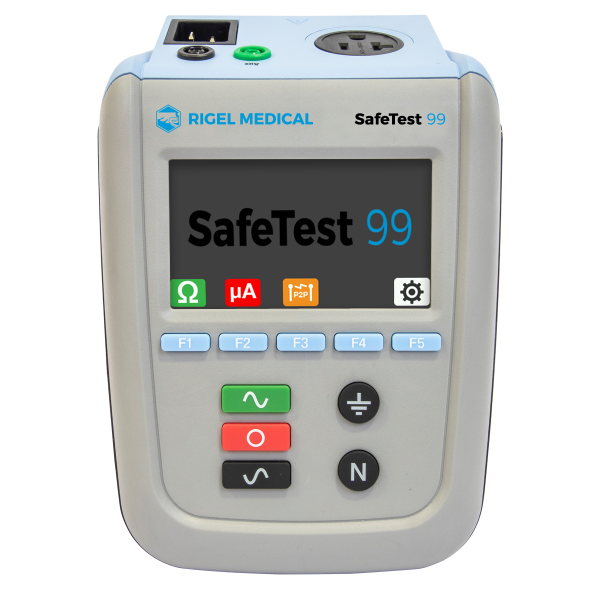

SafeTest 99

SPECIFICATIONS & MANUALS

If you're looking for the SafeTest 99 datasheet featuring full technical specifications or the instruction manual, you can find them here.

Ground Continuity
Method	2 wire ZAP technique
Test Current	>± 200mADC into 2Ω
Max Test Voltage	4-24Vrms o/c
Measuring Range (low range) Resolution	0.001 - 0.999Ω[br]0.001Ω
Measuring Range (mid range) Resolution	1.00 - 9.99Ω[br]0.01Ω
Measuring Range (high range) Resolution	10.0 - 19.9Ω[br]0.1Ω
Accuracy	±1% of value, ± 5mΩ
Circuit Protection	Test inhibited if ≥ 30VAC or DC at 4mm inputs

Powered Leakage Measurements
NFPA-99	Ground leakage[br]Chassis leakage (Touch Current)[br]Patient lead leakage
Measuring Range	0.1 - 9999μA
Measurement/Display Resolution	0.1μA
Accuracy	± 2%, ±5μA
Mains Reversal	Soft key
Single Fault Conditions Open Neutral	Via soft key
Open Ground	Via soft key

EUT Load Current Measurement
Range	0.0A - 20.0A
Resolution	0.1A
Accuracy	±5% ± 2 digits

Power Source
Maximum Current Rating	20A @ 120V / 16A @ 230V
Duty cycle (@70°F ambient)	16A to 20A, 3 min. on/ 10 min. off[br]10A to 15A, 3 min. on/ 5 min. off[br]0A to 10A, continuous

Environmental
Operating temperature	32 to 104°F
Humidity	0 -98% Relative humidity, no-condensation
Storage temperature	14 to 122°F
Altitude	0 – 2185 yards
Ingress Protection	IP 40
Operating pollution degree	2, according to IEC 60529

Applied Parts Connection Box
Size (L x W x D)	6.1 x 2.6 x 1.1” (not including flying lead)
Weight	0.33lbs
Rating	Category I
Environmental Protection	IP 40
Impact rating	5J
Meets the safety standard	BS EN 61010-1:2010 Pollution degree 2
Voltage rating (maximum)	230Vac

General Specification
Weight	2.5lbs (unit)[br]5lbs (complete with accessories)
Size (L x W x D)	9 x 6 x 4”

Ground Continuity
Method	2 wire ZAP technique
Test Current	>± 200mADC into 2Ω
Max Test Voltage	4-24Vrms o/c
Measuring Range (low range) Resolution	0.001 - 0.999Ω[br]0.001Ω
Measuring Range (mid range) Resolution	1.00 - 9.99Ω[br]0.01Ω
Measuring Range (high range) Resolution	10.0 - 19.9Ω[br]0.1Ω
Accuracy	±1% of value, ± 5mΩ
Circuit Protection	Test inhibited if ≥ 30VAC or DC at 4mm inputs

Powered Leakage Measurements
NFPA-99	Ground leakage[br]Chassis leakage (Touch Current)[br]Patient lead leakage
Measuring Range	0.1 - 9999μA
Measurement/Display Resolution	0.1μA
Accuracy	± 2%, ±5μA
Mains Reversal	Soft key
Single Fault Conditions Open Neutral	Via soft key
Open Ground	Via soft key

EUT Load Current Measurement
Range	0.0A - 20.0A
Resolution	0.1A
Accuracy	±5% ± 2 digits

Power Source
Maximum Current Rating	20A @ 120V / 16A @ 230V
Duty cycle (@70°F ambient)	16A to 20A, 3 min. on/ 10 min. off[br]10A to 15A, 3 min. on/ 5 min. off[br]0A to 10A, continuous

Environmental
Operating temperature	32 to 104°F
Humidity	0 -98% Relative humidity, no-condensation
Storage temperature	14 to 122°F
Altitude	0 – 2185 yards
Ingress Protection	IP 40
Operating pollution degree	2, according to IEC 60529

Applied Parts Connection Box
Size (L x W x D)	6.1 x 2.6 x 1.1” (not including flying lead)
Weight	0.33lbs
Rating	Category I
Environmental Protection	IP 40
Impact rating	5J
Meets the safety standard	BS EN 61010-1:2010 Pollution degree 2
Voltage rating (maximum)	230Vac
