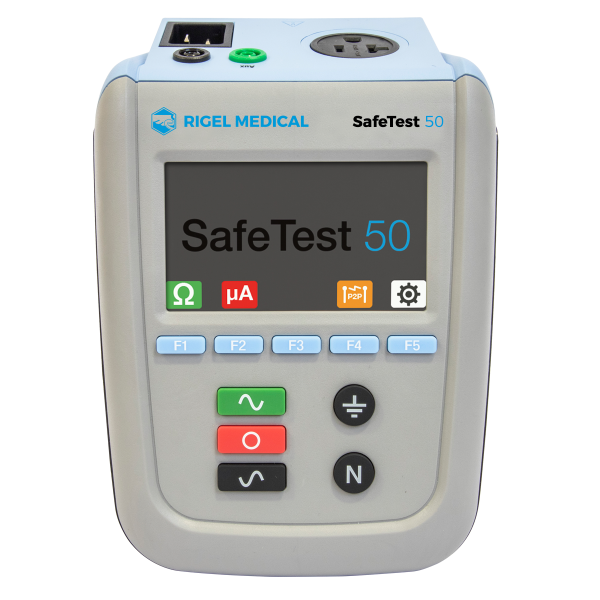

Powered Leakage Measurements | |
---|---|
IEC 62353 | Equipment Leakage (Direct) |
ES 60601 | Ground + Chassis Leakage |
NFPA-99 | Ground + Chassis Leakage |
IEC 61010 | Touch Leakage, Touch Voltage |
Test Voltage | Mains Supply Voltage |
Measuring Range | 0.1- 9999µA (0.1-8000µA typical for IEC 61010) |
Measurement / Display Resolution | 0.1µA |
Accuracy | ± 2%, ± 5µA |
Mains Reversa | Softkey |
Single Fault Conditions | Open Neutral via softkey[br]Open Ground via softkey |
Frequency Response | ES 60601, NFPA-99, IEC 62353 and 61010 |
EUT Load Current Measurement | |
---|---|
Range | 0A – 20A |
Resolution | 0.1A |
Accuracy | ±5% ± 2 digits |
General Specifications | |
---|---|
Weight | 2.5lbs (unit)[br]5lbs (complete with accessories) |
Size (L x W x D) | 9 x 6 x 4” |
Ground Continuity | |
---|---|
Method | 2 wire ZAP technique |
Test Current | >± 200mA DC into 2Ω (zapper circuit) |
Max Test Voltage | 4-24Vrms o/c |
Measuring Range (low range | 0.001 – 0.999Ω / 0.001Ω resolution |
Measuring Range (mid range) | 1.00 – 9.99Ω / 0.01Ω resolution |
Accuracy | ± 1% of value, ± 5 mΩ |
Circuit Protection | Test inhibited if ≥30VAC or DC at 4mm inputs |
Voltage measurement | |
---|---|
Application | L-N, L-E, N-E and touch voltage (IEC 61010) |
Range | 0.0V – 300VAC |
Resolution | 0.1Hz |
Accuracy | ± 2% ± 5 digits (between 10V - 270VAC) |
Mains Frequency | 45 to 66Hz |
Power Source | |
---|---|
Maximum Current Rating | 20A @ 120V / 16A @ 230V |
Duty Cycle | 15A to 20A, 5 min. on/5 min. off[br]10A to 15A, 7 min. on/3 min. off[br]0A to 10A, continuous |
Mains Power | 90-264V 48-64Hz |
DUT Socket | 20A / 120VAC[br]NEMA 5-20R |
