PatSim 400

Our most comprehensive, easy to use Patient Simulator

- Cardiac output simulation
- Vibrant colour display with simple fast navigation
- Lightweight and compact unit with rechargeable Li-Ion battery
- Recall saved simulations with a one key press
- Onscreen waveforms display
- Four IBP channels
- Robust carry case included
- Localisation options available to meet international requirements

Where to buy or ask us a question

Share with...

Cardiac Output Simulation

Store and Recall Simulations

Large Colour Display

Rechargeable Li-Ion Battery

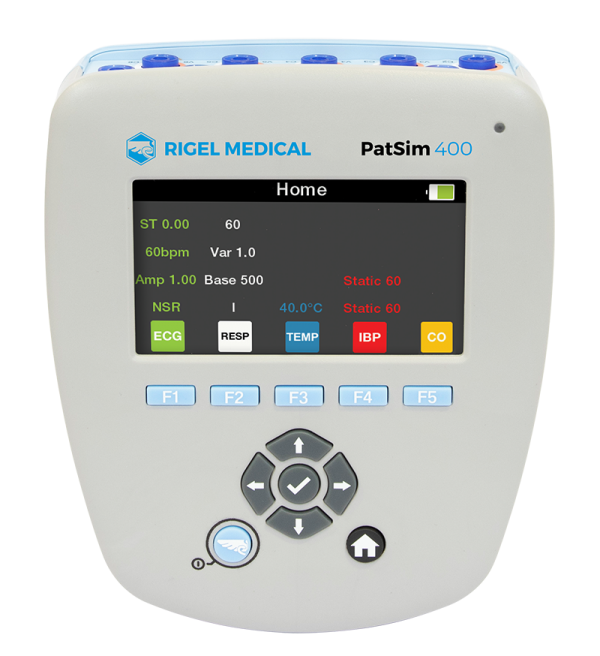

The PatSim 400

The PatSim 400 from Rigel was designed to make every patient simulation quicker.

Unlike other Patient Simulators, the PatSim uses a home and recall function to easily move between tests and store your most used sequences, no more clicking and scrolling through ‘tree style’ hierarchy to perform each test.

Key features of the PatSim 400 include:

- Unique test profiles.

- Storage for up to 5 commonly used test sequences

- Four IBP channels

- Cardiac output simulation

- Onscreen waveform display quick reference

- Cost effective connectors compatible with legacy cables

Why buy the PatSim 400?

- The PatSim 400 saves and recalls 5 of your most used simulations at the touch of just 3 buttons.

- An instant low-cost replacement for old patient simulators - the PatSim 400 is compatible with legacy IBP and temperature cables.

- Rechargeable Li-Ion battery offering 8 hours of operation between charging.

Request a Quote

Make an enquiry

Optional Accessories

Temperature Cables
all accessories

IBP Cables
all accessories

Carry Cases
all accessories

Technical Specifications

Simulation Type
Lead I	70%
Lead II	100%
Lead III	30%
Lead V1	24%
Lead V2	48%
Lead V3	100%
Lead V4	120%
Lead V5	112%
Lead V6	80%

ECG
Normal Sinus Rhythm
Rates	30, 40, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200, 220, 240, 260, 280, 300 BPM
Rate Accuracy	±1BPM or 1%
Amplitude (lead II)	0.05 to 0.45mV (0.05mV steps) 0.5 to 5.5mV (0.5mV steps)
Amplitude Accuracy	± 2%
ST Segments	18 selectable values, 8 elevated and 8 depressed -0.8 to +0.8mV in 0.1mV steps and +0.05mV and -0.05mV on Lead II
Neonatal Mode	ECG R wave width is reduced to 40ms

ECG Performance Tests
Square Waves	2Hz, 0.125Hz
Triangle Wave	2Hz
Pulse	60bpm or 240bpm
Sine Waves	0.05, 0.5, 1, 10, 25, 30, 40, 50, 60, and 100Hz
Performance Amplitude	0.5 to 5.0mV in 0.5mV steps

Pacemaker
Simulated Rhythms	Asynchronous at 75 BPM Demand with frequent sinus beat Demand with occasional sinus beat A-V sequential Non-capture Non-function
Pulse Amplitude	1.0, 2.0, 5.0, 10.0mV
Accuracy	± 5%
Width	0.1, 0.2, 0.5, 1.0, 2.0ms
R-Wave Detector Test	30, 60, 80, 120, 200, 250 BPM
Haver-Triangle Width	8, 10, 12, 20, 40 ,60, 80, 100, 120, 140, 160, 180, 200ms
Performance Amplitude	0.5 to 5.0mV in 0.5mV steps

Arrhythmias
Ventricular	Asystole Bigeminy Trigeminy Ventricular fibrillation (coarse) Ventricular fibrillation (fine) Ventricular tachycardia
Supraventricular	Atrial fibrillation (coarse) Atrial fibrillation (fine) Atrial flutter Atrial tachycardia Missing beat Nodal rhythm Paroxysmal atrial tachycardia Sinus arrhythmia Supraventricular tachycardia
Atrial Conduction	First degree AV block Left bundle branch block Right bundle branch block Second degree AV block - Mobitz I Second degree AV block - Mobitz II Third degree AV block
Premature	Premature atrial contraction Premature nodal contraction Premature left ventricle contraction Premature left ventricle contraction - early Premature left ventricle contraction - R on T Premature right ventricle contraction Premature right ventricle contraction - early Premature right ventricle contraction - R on T Premature ventricular contraction - 6 / min Premature ventricular contraction - 12 / min Premature ventricular contraction - 24 / min Premature ventricular contraction - frequent multifocal

Fetal Simulation
Maternal Heart Rate	80 BPM (Fixed)
Fetal Heart Rate (Selectable)	60, 90, 120, 140, 150, 210 and 240 BPM Fetal Heart Rate (IUP) 140 BPM at beginning, then varying with pressure
pressure Intrauterine-Pressure Waveforms	Early deceleration, late deceleration and uniform acceleration
Simulation Period	Manual, or 2, 3, or 5 minutes

Invasive Blood Pressure
Channels	4 channels
Static Pressure	-10, -5, 0, 20, 40, 50, 60, 80,100, 150,160, 200, 240, 320, 400mmHg
Dynamic Simulation	Arterial [ART] 120/80 Radial Artery [RA] 120/80 Left Ventricle [LV] 120/00 Right Ventricle [RV] 25/00 Right Atrium (central venous) [CVP] 15/10 Pulmonary Artery [PA] 25/10 Pulmonary Artery Wedge [PAW] 10/2 Left Atrium [LA] 14/4
Accuracy	± 1mmHg
Excitation voltage	2 to 16V
Impedance	350Ω Nominal
Simulated sensitivity	5μV/V/mmHg or 40μV/V/mmHg (user selectable)
Connector	mini DIN style

Temperature
Simulation	YSI 400 / 700A / 700B Static
Temperature Unit	°C or °F, user selectable
Range	0.0, 24.0, 37.0, and 40.0°C 32.0, 75.2, 98.6, 104.0°F
Accuracy	± 0.1°C / °F
Connector	Mini DIN style

Respiration
Rates	Selectable values of 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm
Lead Selection	Lead I and II, user selectable
Base Resistances	500, 1000, 1500 & 2000Ω
Accuracy	±10%
Resistance Variations	0.2, 0.5, 1.0, 3.0Ω
Apnoea Simulation	Manual ON / OFF

Mains Power/Battery Info
Mains Power/Battery Info	3.7V 3900mAh 14.4WH 5V 1A USB micro-B power supply 100-240V ~ 50/60Hz 0.18A max.
Charge Time (new battery)	Up to 3-4 hours
Battery Life	Up to 6 hours, ~4 hours
Weight	0.70kg / 1.5lbs
Dimensions	180 x 150 x 55mm, 7.1 x 5.9 x 2.2"

Environmental Specifications
Operating Conditions	10 - 40°C (50 - 104°F) 0-90% RH - NC
Storage Environment	-15 - 60°C (5 - 140°F) 0-90% RH - NC
Environmental Protection	IP40

Cardiac Output
Catheter Type	Baxter Edwards, 93a-131-7f
Calibration coefficient	0.542 (0 °C injectate), 0.595 (24 °C injectate) Blood Temperature 37 °C (98.6 °F) ± 2 %
Injectate Volume	10 cc
Injectate Temperature	0 °C or 24 °C ± 2 % value
Cardiac Output	2.5 l/min, 5 l/min, 10 l/min ± 5 %
Connector	mini DIN style

Simulation Type
Lead I	70%
Lead II	100%
Lead III	30%
Lead V1	24%
Lead V2	48%
Lead V3	100%
Lead V4	120%
Lead V5	112%
Lead V6	80%

ECG
Normal Sinus Rhythm
Rates	30, 40, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200, 220, 240, 260, 280, 300 BPM
Rate Accuracy	±1BPM or 1%
Amplitude (lead II)	0.05 to 0.45mV (0.05mV steps) 0.5 to 5.5mV (0.5mV steps)
Amplitude Accuracy	± 2%
ST Segments	18 selectable values, 8 elevated and 8 depressed -0.8 to +0.8mV in 0.1mV steps and +0.05mV and -0.05mV on Lead II
Neonatal Mode	ECG R wave width is reduced to 40ms

ECG Performance Tests
Square Waves	2Hz, 0.125Hz
Triangle Wave	2Hz
Pulse	60bpm or 240bpm
Sine Waves	0.05, 0.5, 1, 10, 25, 30, 40, 50, 60, and 100Hz
Performance Amplitude	0.5 to 5.0mV in 0.5mV steps

Pacemaker
Simulated Rhythms	Asynchronous at 75 BPM Demand with frequent sinus beat Demand with occasional sinus beat A-V sequential Non-capture Non-function
Pulse Amplitude	1.0, 2.0, 5.0, 10.0mV
Accuracy	± 5%
Width	0.1, 0.2, 0.5, 1.0, 2.0ms
R-Wave Detector Test	30, 60, 80, 120, 200, 250 BPM
Haver-Triangle Width	8, 10, 12, 20, 40 ,60, 80, 100, 120, 140, 160, 180, 200ms
Performance Amplitude	0.5 to 5.0mV in 0.5mV steps

Arrhythmias
Ventricular	Asystole Bigeminy Trigeminy Ventricular fibrillation (coarse) Ventricular fibrillation (fine) Ventricular tachycardia
Supraventricular	Atrial fibrillation (coarse) Atrial fibrillation (fine) Atrial flutter Atrial tachycardia Missing beat Nodal rhythm Paroxysmal atrial tachycardia Sinus arrhythmia Supraventricular tachycardia
Atrial Conduction	First degree AV block Left bundle branch block Right bundle branch block Second degree AV block - Mobitz I Second degree AV block - Mobitz II Third degree AV block
Premature	Premature atrial contraction Premature nodal contraction Premature left ventricle contraction Premature left ventricle contraction - early Premature left ventricle contraction - R on T Premature right ventricle contraction Premature right ventricle contraction - early Premature right ventricle contraction - R on T Premature ventricular contraction - 6 / min Premature ventricular contraction - 12 / min Premature ventricular contraction - 24 / min Premature ventricular contraction - frequent multifocal

Fetal Simulation
Maternal Heart Rate	80 BPM (Fixed)
Fetal Heart Rate (Selectable)	60, 90, 120, 140, 150, 210 and 240 BPM Fetal Heart Rate (IUP) 140 BPM at beginning, then varying with pressure
pressure Intrauterine-Pressure Waveforms	Early deceleration, late deceleration and uniform acceleration
Simulation Period	Manual, or 2, 3, or 5 minutes

Invasive Blood Pressure
Channels	4 channels
Static Pressure	-10, -5, 0, 20, 40, 50, 60, 80,100, 150,160, 200, 240, 320, 400mmHg
Dynamic Simulation	Arterial [ART] 120/80 Radial Artery [RA] 120/80 Left Ventricle [LV] 120/00 Right Ventricle [RV] 25/00 Right Atrium (central venous) [CVP] 15/10 Pulmonary Artery [PA] 25/10 Pulmonary Artery Wedge [PAW] 10/2 Left Atrium [LA] 14/4
Accuracy	± 1mmHg
Excitation voltage	2 to 16V
Impedance	350Ω Nominal
Simulated sensitivity	5μV/V/mmHg or 40μV/V/mmHg (user selectable)
Connector	mini DIN style

Temperature
Simulation	YSI 400 / 700A / 700B Static
Temperature Unit	°C or °F, user selectable
Range	0.0, 24.0, 37.0, and 40.0°C 32.0, 75.2, 98.6, 104.0°F
Accuracy	± 0.1°C / °F
Connector	Mini DIN style

Respiration
Rates	Selectable values of 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm
Lead Selection	Lead I and II, user selectable
Base Resistances	500, 1000, 1500 & 2000Ω
Accuracy	±10%
Resistance Variations	0.2, 0.5, 1.0, 3.0Ω
Apnoea Simulation	Manual ON / OFF

Mains Power/Battery Info
Mains Power/Battery Info	3.7V 3900mAh 14.4WH 5V 1A USB micro-B power supply 100-240V ~ 50/60Hz 0.18A max.
Charge Time (new battery)	Up to 3-4 hours
Battery Life	Up to 6 hours, ~4 hours
Weight	0.70kg / 1.5lbs
Dimensions	180 x 150 x 55mm, 7.1 x 5.9 x 2.2"

Environmental Specifications
Operating Conditions	10 - 40°C (50 - 104°F) 0-90% RH - NC
Storage Environment	-15 - 60°C (5 - 140°F) 0-90% RH - NC
Environmental Protection	IP40

Cardiac Output
Catheter Type	Baxter Edwards, 93a-131-7f
Calibration coefficient	0.542 (0 °C injectate), 0.595 (24 °C injectate) Blood Temperature 37 °C (98.6 °F) ± 2 %
Injectate Volume	10 cc
Injectate Temperature	0 °C or 24 °C ± 2 % value
Cardiac Output	2.5 l/min, 5 l/min, 10 l/min ± 5 %
Connector	mini DIN style
