410A906

Safetest 60+

Our enhanced entry-level electrical safety analyzer for medical devices

- Point to point insulation testing 100K – 100MΩ
- Dynamic pass/fail thresholds during measurement
- Compact, robust and portable design
- Manual control of fault conditions and tests
- Accurate high current, low energy earth bond testing
- Patient leakage testing
- Point-to-point insulation testing
- Automatic warning of secondary earth/ground paths

Where to buy or ask us a question

Share with...

Patient applied parts testing

Manual control of fault conditions and tests

Dynamic pass/fail thresholds during measurement

Accurate high current, low energy earth bond testing

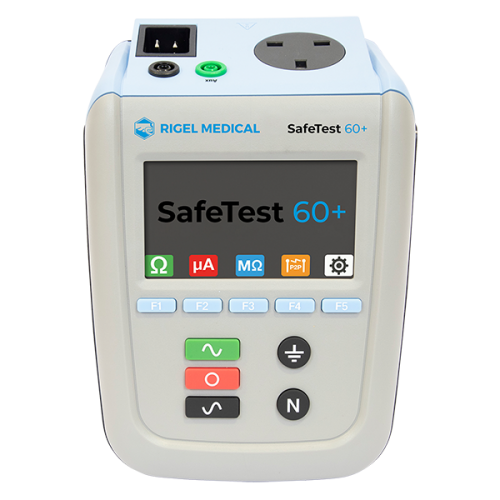

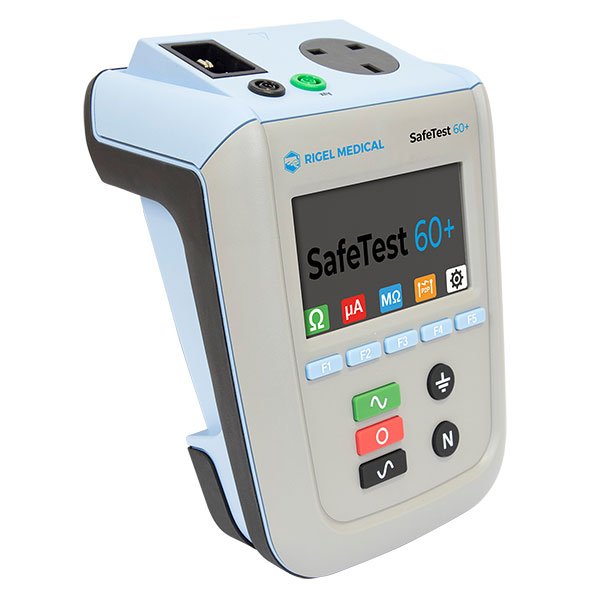

Rigel SafeTest 60+ Electrical Safety Analyzer

The newest upgrade to the SafeTest series. The SafeTest 60+ has been designed specifically to implement high volumes of medical and lab testing. Available in a wide range of power configurations to suit local and international markets. Discover accessible and clear UI, allowing you to select the required tests with a single key.

It is ideal for testing high volumes of medical and laboratory equipment that does not require patient lead testing, such as beds, hoists, infusion pumps, CPAP’s and centrifuges etc. However, the SafeTest 60+ now provides basic testing of medical equipment with applied parts, both patient current leakage and insulation measurement to ensure electrical safety

The SafeTest 60+ includes a range of safety tests to enable compliance with a range of international safety standards, including leakage testing to: IEC 60601, 62353, 61010 and NFPA-99, earth bond testing to 62353, 61010 and NFPA-99, and insulation testing to IEC 62353.

Why buy the SafeTest 60+?

The SafeTest 60+ is available in a wide range of power configurations to suit local and international markets
With a large colour display and a colour-coded user interface, it’s easy to select the required tests with a single key press, whilst a fast step-through of the test routine makes the testing process speedy and dependable.

Request a Quote

Make an enquiry

Optional Accessories

SafeTest Applied Parts Box
All Accessories

SafeTest Power Cords

Carry Cases
all accessories

Test Leads
all accessories

Technical Specifications

Earth Continuity
Pre-pulse	2 wire ZAP technique
Pulse Shape	Exponential Decay
Decay Time	200 – 550μs to 5% of peak (0.1 to 0.8Ω respectively)
Method	Wire
Measurement Current	>± 200mADC into 2Ω
Max Test Voltage	4-24Vrms o/c
Measuring Range (Low Range)	0.001 – 0.999Ω
Resolution	0.1Ω
Measuring Range (Mid Range)	1.00 – 9.99Ω
Measuring Range (High Range)	10.0 – 19.9Ω
Accuracy	± 1% of value, ± 5mΩ ± 1% of value, ± 5mΩ
Circuit Protection	Test inhibited if ≥ 30VAC or DC at 4mm inputs

Insulation Resistance
Measurement	Point-to-point and EUT to Earth
Voltage	500VDC @1mA
Maximum O/C Voltage	<600VDC
Range	100K – 100MΩ ± 5% ± 2 Digits
Resolution	0.01MΩ
Short Circuit Current	<2mA

Powered Leakage Measurements
IEC 62353	Equipment Leakage (Direct)
IEC / AAMI 60601	Earth + Enclosure Leakage + Patient Leakage
NFPA-99	Ground + Chassis Leakage + Patient Leakage
IEC 61010	Touch Leakage, Touch Voltage
Test Voltage	Mains Supply Voltage
Measuring Range	0.1 - 9999μA (0.1 - 8000μA typical for IEC61010)
Measurement/Display Resolution	0.1μA
Accuracy	± 2%, ± 5μA
Mains Reversal	Soft Key
Single Fault Conditions	Open Neutral and Open Earth Via Soft Key
Frequency Response	IEC 60601 – 62353, NFPA-99, and IEC 61010 selectable

Voltage Measurement
Application	L-N, L-E, N-E and touch voltage (IEC 61010)
Range	0.0V – 300VAC
Resolution	0.1Hz
Accuracy	Unspecified
Mains frequency	45.0 – 66.0Hz

EUT Load Current Measurement
Range	0.0A – 20.0A
Resolution	0.1A
Accuracy	±5% ± 2 digits

Power Source
Maximum Current Rating	20A @ 120V / 16A @ 230V
Duty cycle (@21°C ambient)	16A to 20A, 3 min. on/ 10 min. off 10A to 15A, 3 min. on/ 5 min. off 0A to 10A, continuous
Mains Power	90-264V 48-64Hz

General Specifications
Weight	1.1kg/2lbs (unit) 2.2kg/5lbs (complete with accessories)
Size (L x W x D)	225 x 150 x 100mm / 9 x 6 x 4”
Operating Temperature	0 to 40°C
Humidity	0 – 98% Relative humidity, non-condensating
Storage Temperature	-10 to 50°C
Altitude	0 – 2000m
Ingress Protection	IP 40
Operating Pollution Degree	2, according to IEC 60529
Overvoltage Category	CAT II 300V
